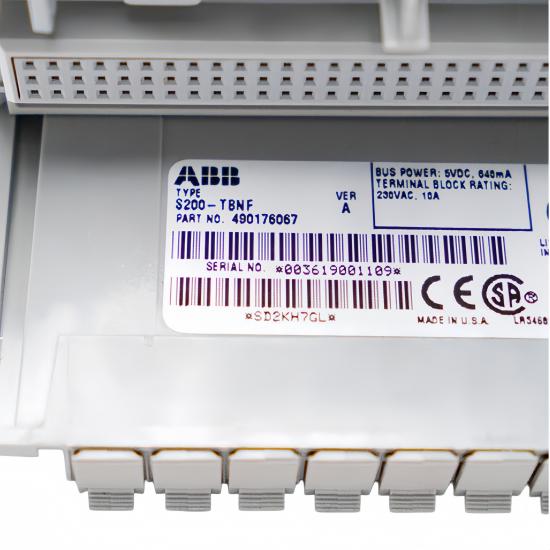

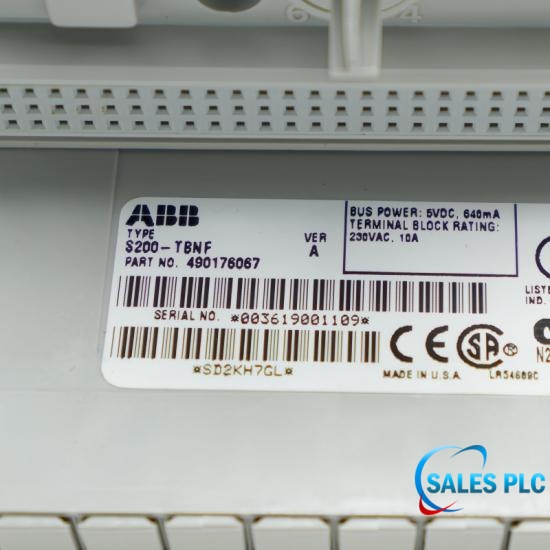

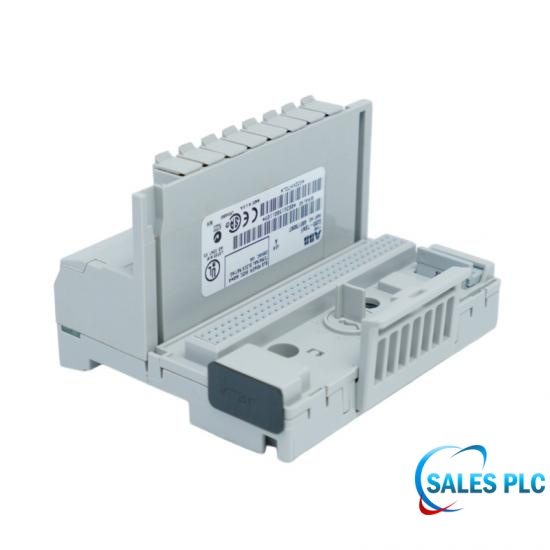

S200-TBNF / S200TBNF / 200-TBNF
Fused two-row terminal base for S200 I/O units, primarily for eight-channel input or output units and delivered with eight 3 A fuses · Order code 200-TBNF
Lifecycle note: Replacement selection must match the 200-TBNF order code, the inserted I/O unit, channel wiring, fuse dimensions and rating, voltage class and backplane coding.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786Fused terminal base unit · S200 I/O System
ABB Satt 200-TBNF is a fused terminal base intended to connect one S200 I/O unit and field devices to the I/O system. Its insulated screw terminals support applications using +24 V DC as well as units allowing 230 V AC connections.
The base is primarily intended for eight-input or eight-output units. It has two rows of ten screw terminals. The upper row includes eight fuse holders connected in series with the eight upper-row channels; ABB supplies the base with 3 A fuses and identifies 200-OW8 as the primary intended unit.
The lower row provides odd-numbered I/O-signal terminals, with terminals 34 and 51 used for +24 V DC connection. Isolation and backplane coding depend on the inserted I/O unit and must be verified before replacement.
| Manufacturer | ABB |
|---|---|
| Product family | Satt S200 I/O System |
| Submitted model aliases | S200-TBNF; S200TBNF |
| Official order code | 200-TBNF |
| Product type | Fused terminal base unit |
| Primary application | Eight-input or eight-output S200 I/O units; primarily intended for 200-OW8 |

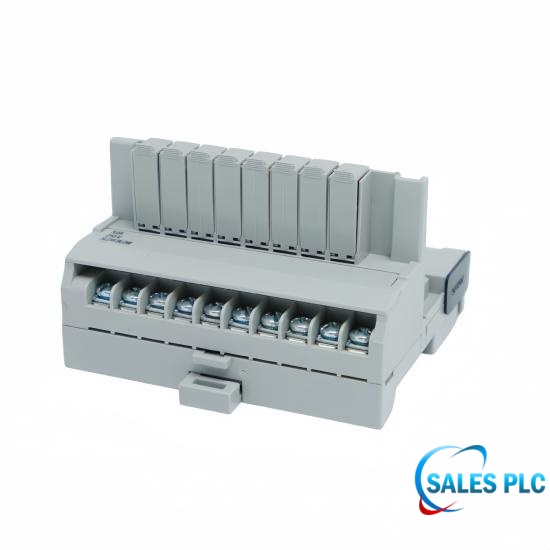

| Terminal arrangement | Two rows of 10 screw terminals |
| Upper-row supply terminals | Terminals 16 and 33 dedicated to 0 V DC |
| Upper-row signal terminals | Even-numbered terminals for device input/output signals |
| Lower-row supply terminals | Terminals 34 and 51 for +24 V DC connection |
| Lower-row signal terminals | Odd-numbered terminals for device input/output signals |
| Fuse holders | Eight, connected in series with the eight upper-row channels |
| Fuse size | 5 × 20 mm |
| Supplied fuse rating | 3 A |
| Maximum current capacity | 10 A |
| Maximum voltage rating | 264 V AC rms |
| Conductor size | 0.5–2.5 mm² (AWG 20–12), solid or stranded copper |
| Dimensions (H × W × D) | 94 × 97 × 48 mm; 72 mm deep with I/O unit fitted |
| Net weight | 0.145 kg, excluding package |
| Isolation / backplane key | Determined by the inserted I/O unit |
Replacement selection must match the 200-TBNF order code, the inserted I/O unit, channel wiring, fuse dimensions and rating, voltage class and backplane coding.
It is a fused terminal base for connecting one S200 I/O unit and field devices, primarily for units with eight inputs or eight outputs.
They are submitted search aliases for this listing; ABB’s official accessory data sheet uses the order code 200-TBNF. Verify the installed nameplate before ordering.
It has two rows of ten screw terminals, for a total of twenty terminals.
The upper row has holders for eight fuses connected in series with the eight upper-row channels.
ABB lists eight 5 × 20 mm fuses and states that the base is delivered with 3 A fuses. The application fuse requirement must still be verified.
ABB identifies 200-OW8 as the primary intended unit for the supplied 3 A fused arrangement.
The official data sheet lists 10 A maximum current capacity and 264 V AC rms maximum voltage.
The specified range is 0.5–2.5 mm² solid or stranded copper wire, equivalent to AWG 20–12.
Confirm the exact order code, inserted I/O unit, terminal numbering, voltage, channel wiring, fuse dimensions and rating, isolation requirement and backplane key code.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Technical information is based on ABB S200 I/O System Accessories Data Sheet. Final suitability must be verified against the exact installed unit and official documentation.
