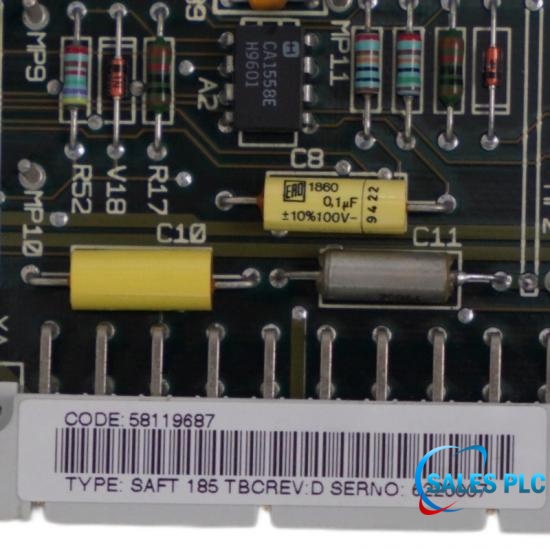

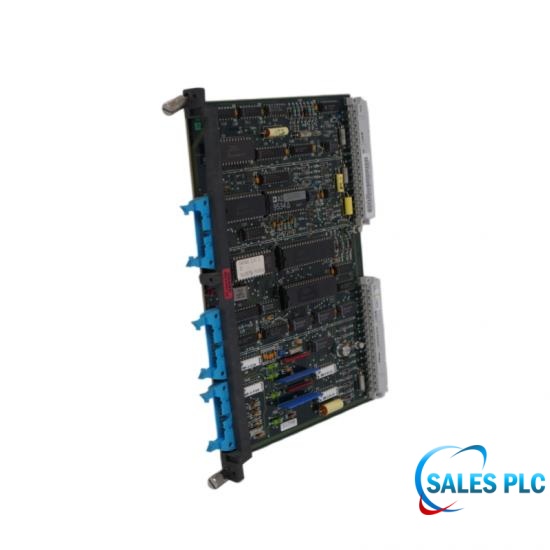

Control Board | SAFT 185 TBC 58119687 | ABB

Technical Specifications

The ABB SAFT185TBC 58119687 is a drive control board for industrial drive applications. The board operates with a 24 V DC control voltage and is intended for drive systems with a power supply range of 200–500 V AC. SAFT185TBC 58119687 supports drive systems with a rated drive power from 0.37 kW to 45 kW, making it suitable for a wide range of motor control applications. The board accepts standard industrial analog input signals of 0–10 V and 4–20 mA, allowing SAFT185TBC 58119687 to interface with common control devices and process signals used in industrial automation.

Troubleshooting & Commissioning Checklist

Backplane Connector Alignment: Align the card precisely in its frame slots; ensure the multi-pin connector arrays seat flatly and completely without pinning or bending backplane teeth.
Low-Voltage Supply Interrogation: Measure the cabinet's auxiliary control lines at the card terminals to confirm compliance within a ±5% range before commissioning.
Wiring Terminal Verification: Confirm that all multi-conductor termination plug blocks are fastened securely and individual cable labels match the original engineering schematic.
Conformal Coating Quality Assessment: Inspect the card face for deep gouges or trace scratches in the protection coat; clear any metal dust or stray copper hairs away from raw solder pads.

Field Engineering Considerations

Arc and Pin Mitigation: You must completely turn off both the main line power and the +24V DC auxiliary control power before removing or seating the board. Live insertion can cause pins to misalign or arc, instantly shorting out adjacent data lines and destroying the processing chips.
Pin Alignment Precautions: The card utilizes a high-density, multi-pin backplane connector matrix. Over years of thermal cycling, plastic frames inside legacy cages can warp slightly.
Insertion Force Rule: Slide the card into the guiding rails perfectly square. If you feel structural resistance, do not force it. Extract the card and inspect the backplane pins under a flashlight for any bent, cross-keyed, or oxidized teeth.

Technical FAQ

Q: How can I isolate an unexpected "Drive Communication Timeout" error involving the SAFT 185 TBC 58119687?
A: De-energize the machine, extract the module, and examine the high-density backplane multi-pin interface for physical distortion or corrosion. Spray the mating zones with a quick-evaporating contact cleaner prior to reinstallation.

Q: What is the correct cable shielding practice for low-voltage signal lines leading to the SAFT 185 TBC 58119687 terminals?
A: Connect external low-voltage shielded control wiring to earth at a single termination point only—ideally the main cabinet backpanel chassis—to intercept common-mode ground currents.

Q: Does the SAFT 185 TBC 58119687 module support hot-swapping while the control cage is active?
A: No, under no circumstances. You must kill and lock out the main power feed together with all secondary DC control rails before pulling or seating the card to avoid blowing backplane pins via accidental shorting.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
