Power Supply Board | SAMC11 POW 57171847 | ABB

Technical Specifications

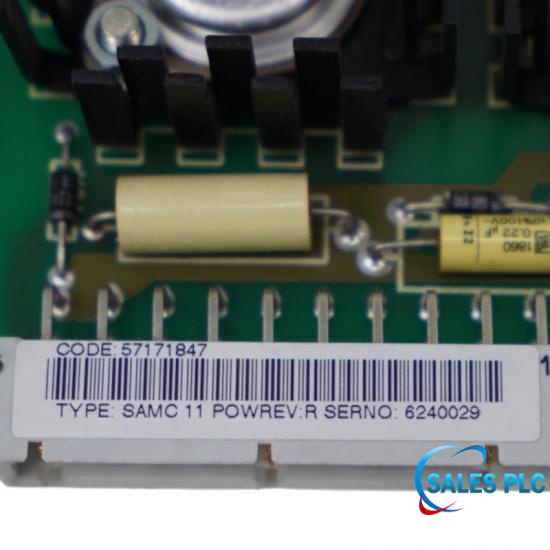

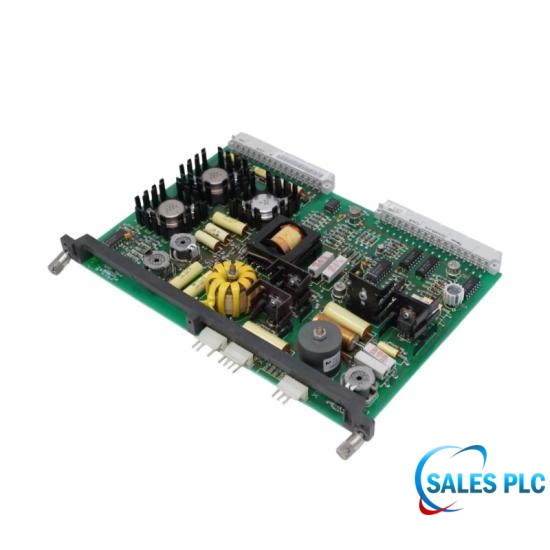

The ABB SAMC11 POW 57171847 is a power supply board for industrial automation and drive control applications. The module provides reliable power conversion for control electronics by accepting a 24 VDC input DC bus voltage or 110 VDC / 220 VDC input DC bus voltage, making SAMC 11 POW 57171847 suitable for a wide range of industrial power supply configurations. With a rated power of 80 W, the board delivers stable electrical power for continuous operation in demanding industrial environments.

Troubleshooting & Commissioning Checklist

Electrolytic Capacitor Desiccate & Vent Audit: Visually examine all onboard electrolytic capacitors for bulges, crusty brown leakage, or a distinct "fishy" chemical smell.
Backplane Pin Alignment: Check the multi-pin DIN backplane male connector for bent, tarnished, or corroded pins. Clean with an isopropyl alcohol based electronic solvent.
Uncouple Logic Boards: Slide out the neighboring processing boards  by one inch to isolate them. This ensures that if the SAMC11 POW 57171847 malfunctions or spikes on its first power-up, it will not destroy downstream control microprocessors.

Field Engineering Considerations

Downstream Logic Card Isolation: A voltage runaway can destroy host microprocessors. Disengage adjacent cards by 1 inch before initial power-up. Verify stable outputs at test points before re-seating them.
Hiccup Mode Short Diagnostics: An audible "chirping" or "clicking" indicates overcurrent protection. The short is usually on an adjacent card or external 24V loop. Pull downstream cards one-by-one until clicking stops to isolate the fault.
Thermal Derating Limits: High cabinet temperatures halve capacitor lifespans for every 10°C rise above nominal ratings. Maintain clean enclosure filters and ensure internal transformer hotspots do not exceed 85°C under full load.

Technical FAQ

Q: Why does the SAMC11 POW 57171847 sometimes make an audible clicking or chirping sound?
A: This indicates the board has entered Foldback Overcurrent Protection or "Hiccup Mode." It happens when a downstream card or an external 24V loop sensor has a dead short, forcing the SAMC11 POW 57171847 to repeatedly shut down and restart to protect itself from burning out.

Q: Why must a technician measure the output ripple on the SAMC11 POW 57171847 during PM inspections?
A: The nominal voltage ripple must be ≤ 50 mVp-p. Because these boards contain aluminum electrolytic capacitors that dry out over decades, a spike in ripple voltage past 100 mVp-p will introduce heavy electrical noise into the system, causing neighboring control cards to crash with intermittent "CPU Communication Loss" or "Analog Drift" faults.

Q: What is the recommended field testing rule when inserting a replacement SAMC11 POW 57171847 into a drive rack?
A: Isolate the load before testing. Always back out or disengage the adjacent logic and processing cards by at least an inch before powering up the new SAMC11 POW 57171847. Verify the +5V and ±15V outputs are completely stable at the test points first, then turn off power and re-seat the logic cards. This protects expensive processing boards from potential over-voltage spikes if the power supply feedback loop fails on initial power-up.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
