Control Module | SNAT 617 CHC 61037136 | ABB

Technical Specifications

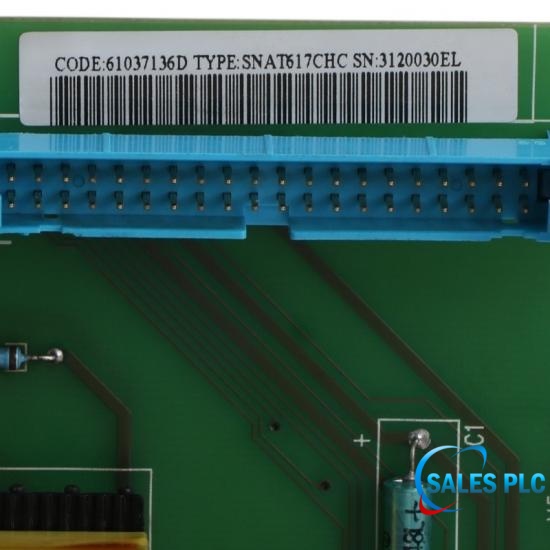

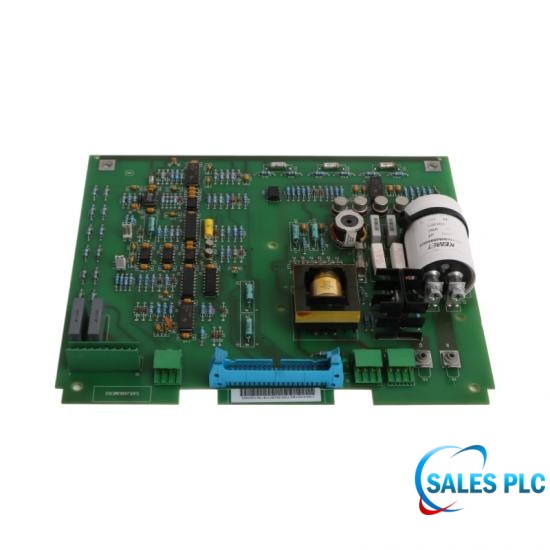

The ABB SNAT617CHC 61037136 is a chopper control board for industrial drive applications. The board operates with a 24 V DC power supply and uses an internal drive interface for communication with compatible drive systems. SNAT617CHC 61037136 supports a PWM output frequency from 1 kHz to 20 kHz, allowing flexible pulse-width modulation for chopper control. The board accepts 0–10 V and 4–20 mA analog input signals, enabling compatibility with standard industrial control signals.

Troubleshooting & Commissioning Checklist

Mechanical Alignment & Rail Fit: Guide the hardware down the enclosure slots evenly, verifying that the backplane pin groupings mate cleanly without forcing the module.
Braking Resistor Loop Verification: Run a resistance check across the standalone braking resistor bank to match it with blueprint data, making sure no current path exists between the loop and earth.
Fiber-Optic Connection Quality: If the architecture includes fiber optic setups, examine the cable ferrules for dirt or structural damage, latching them home into the optical rx/tx adapters until they click tight.

Field Engineering Considerations

Residual DC Bus Energy Hazard: Before pulling or installing the card, open and lock out the main three-phase AC feeder breaker. Wait at least 15 to 20 minutes for the drive's large internal capacitor banks to discharge.
Physical Measurement Verification: Always use a calibrated high-voltage multi-meter probe to verify that the DC Link bus voltage has dropped below 50V DC at the cabinet test points before touching the SNAT 617 CHC 61037136 terminal links.
Logic/Power Safe Isolation: Never connect or disconnect any terminal plugs, fiber-optic leads, or multi-pin backplane connections while the 24V DC auxiliary control power is active. Doing so can cause logic race conditions that trigger unexpected IGBT firing.

Technical FAQ

Q: What type of fiber-optic or signal care is required when reinstalling a SNAT 617 CHC 61037136?
A: Swab the fiber optic ferrule tips using lint-free materials and isopropyl alcohol. Keep any cable curves above a 25 mm threshold to protect against signal loss that could warp gating commands.

Q: Why does the drive trip on "DC Link Overvoltage" if the SNAT 617 CHC 61037136 is failing?
A: A punctured gate driver component or a worn voltage-detector resistor network prevents the assembly from firing the chopper IGBTs during deceleration, causing energy to back up dangerously on the DC bus.

Q: Can field technicians hot-swap the SNAT 617 CHC 61037136 card while the drive is energized?
A: No, under no circumstances. Isolate and lock out the main power line alongside the +24V DC auxiliary control bus prior to board removal to avoid ghost IGBT triggering or logic shorts.

Q: Does the SNAT 617 CHC 61037136 have protective shielding against harsh paper or steel mill atmospheres?
A: Yes, the multi-layered FR4 board is completely coated in an industrial-grade varnish to isolate sensitive copper traces from moisture, ambient oil vapor, and metallic particles.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
