Interface Module | SAMC 19I NF 57401389 | ABB

Technical Specifications

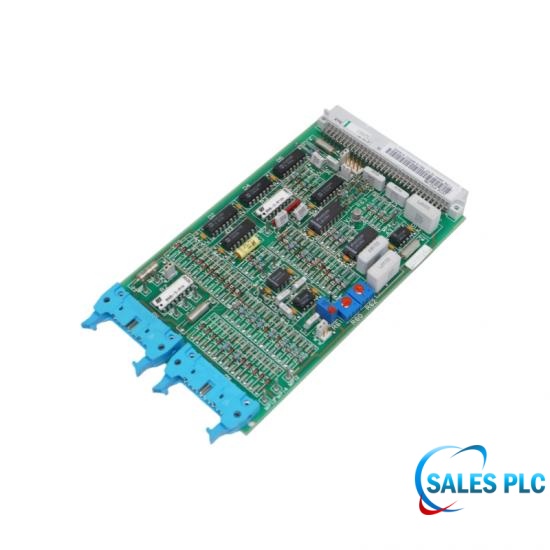

The ABB SAMC19INF 57401389 is an interface board for industrial drive control systems. Driven by a 24 V DC input, the card maintains a trigger response threshold of ≤ 1 ms, which facilitates high-speed data execution and immediate loop feedback across the control architecture. The SAMC19INF 57401389 adheres to an active operational thermal envelope of -20°C to +70°C, supplemented by a long-term storage rating spanning -40°C to +85°C. Moreover, the module remains fully operational under non-condensing relative humidity levels between 5% and 95% RH, ensuring survival across volatile manufacturing environments.

Troubleshooting & Commissioning Checklist

Visual Capacitor Inspection: Look over the multi-layer circuit board for swollen or degraded electrolytic capacitors, since older modules sitting unpowered in deep storage are prone to dielectric insulation failure.
Backplane Pin Integrity Check: Check the multi-pin parallel backplane connector cluster for any distorted, rusted, or dirty contact pins prior to sliding the card along the sub-rack guide tracks.
Auxiliary Bus Power Interrogation: Take a voltage reading across the central control busbar to confirm it stays entirely inside designated operating boundaries before slotting the logic card in.
Conformal Coating Quality Review: Scan the module to ensure the heavy protective lacquer film shows no signs of gouging or flaking, keeping the sub-surface 16-bit data paths insulated from industrial soot.

Field Engineering Considerations

Backplane Arcing Risks: The SAMC19INF 57401389 features a high-density, multi-pin parallel backplane architecture that distributes sensitive 16-bit address and data lines alongside the main 24V DC bus. This board possesses zero tolerance for live insertion.
Pre-Extraction Protocol: You must completely turn off and lock out both the primary high-voltage line supply and the +24V DC auxiliary control power before removing or seating the card. Pulling or sliding this card live will cause uneven pin contact, generating logic transients that can permanently fry the onboard microprocessor or trigger catastrophic misfires in downstream power switches.

Technical FAQ

Q: Can I hot-swap the SAMC 19I NF 57401389 card while the drive's control power is active?
A: Absolutely not, as this module cannot be hot-swapped under any circumstances. To prevent catastrophic arcing across the backplane pins, kill both the primary line feed and the secondary 24V DC control grid prior to pulling or plugging the card.

Q: What step should I take before installing a SAMC 19I NF 57401389 unit that has been in long-term storage?
A: Perform a close visual check and reform the integrated electrolytic capacitors with a current-regulated DC bench supply, which stops sudden insulation breakdown or component rupture when the unit faces sudden line voltage.

Q: What causes an intermittent "Processor Link Error" dropout on a running SAMC 19I NF 57401389 card?
A: This symptom commonly stems from surface corrosion layer buildup on the rear high-density pinning, unfastened front panel screws, or fatigue cracks inside the PCB solder pads caused by years of operational heating and cooling.
