Pulse Amplifier Board | SNAT 633 PAC 61049444 | ABB

Technical Specifications

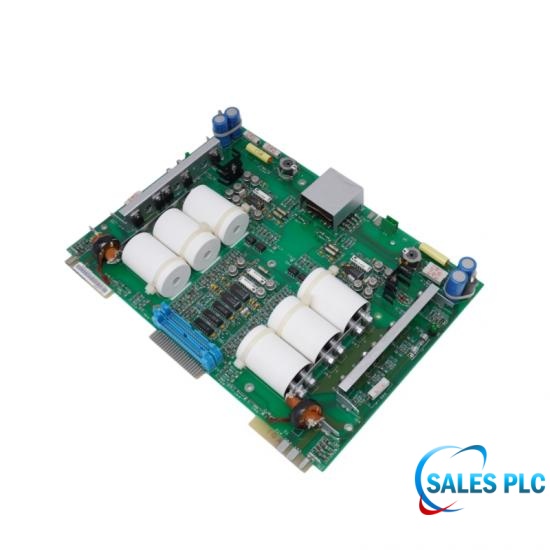

The ABB SNAT633PAC 61049444 is a pulse amplifier board for reliable signal amplification in industrial automation systems. Running on a standard 24 V DC supply, the hardware delivers an upper output frequency threshold of 10 kHz, establishing its capability for high-speed pulse propagation and data execution. Drawing a maximum power load of ≤ 5 W, the SNAT633PAC 61049444 combines high-efficiency operation with stable electrical characteristics across rigorous manufacturing settings.

Troubleshooting & Commissioning Checklist

Mechanical Alignment and Rail Fit: Guide the module evenly down its assigned track channels, making certain that the multi-pin connector arrays bottom out flat and square to avoid jamming or warping the backplane contacts.
Auxiliary Power Verification: Check the low-voltage secondary power lines directly at the chassis terminal blocks ahead of module insertion, verifying the voltage reads inside designated limits.
Conformal Coating Inspection: Look over the circuit board for any bare trace gouges or flaking varnish, ensuring that zero conductive metal particles or copper flakes remain on the component face.

Field Engineering Considerations

Heatsink Clearance Integrity: Ensure that the board's dedicated aluminum thermal dissipation plates are clear of surrounding wiring looms or adjacent boards. Proper cabinet forced-air convection is necessary to keep power-switching transistors cool during continuous, high-frequency firing cycles.
Power Busbar Segregation: Maintain a clearance of at least 30 cm between these gating lines and high-current AC/DC busbars. High-current transients can induce parasitic signals on the trigger lines, causing accidental gate firing and dangerous line-to-line short circuits.

Technical FAQ

Q: Can field technicians hot-swap the SNAT 633 PAC 61049444 module while the drive system is running?
A: No, hot-swapping is entirely forbidden as this hardware offers no such capability. To prevent major component destruction, completely disconnect and tag out the main three-phase mains alongside the low-voltage auxiliary control circuits before pulling the card.

Q: Why does the SNAT 633 PAC 61049444 incorporate built-in high-frequency isolation transformers?
A: They create secure galvanic isolation to decouple the heavy power circuits from the control system. This mechanism keeps high-voltage feedback surges from bleeding into and ruining the delicate low-voltage drive computer if a power semiconductor breaks down.

Q: What does a "Pulse Missing" or Phase Loss fault code indicate on a system housing the SNAT 633 PAC 61049444?
A: This warning code typically points to a burned-out onboard driving transistor, a fractured output toroidal transformer, an open circuit in the gate wire assembly, or a shorted gate layer inside an attached power Thyristor.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
