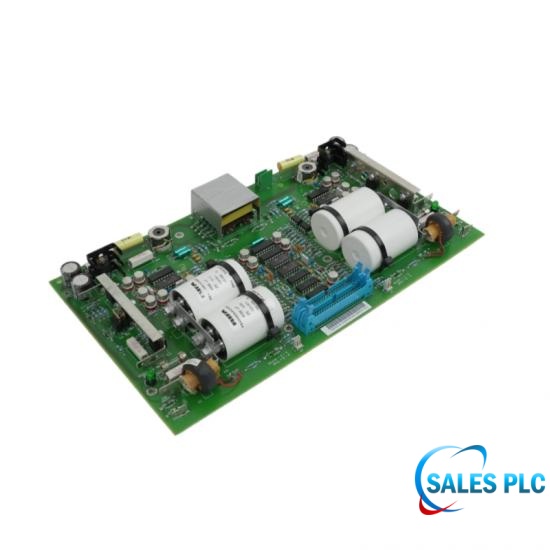

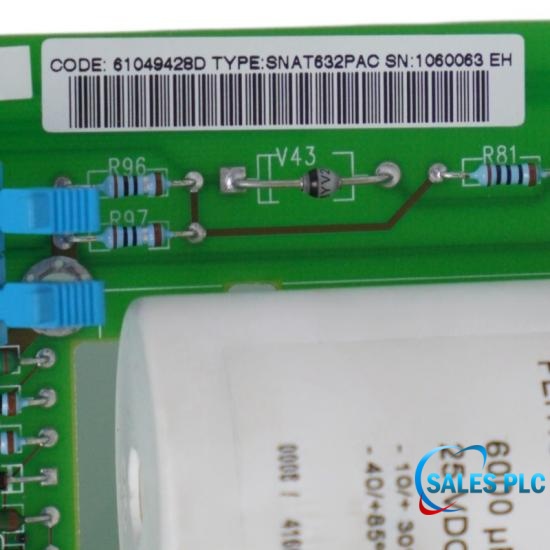

Pulse Amplifier Board | SNAT 632 PAC 61049428 | ABB

Technical Specifications

The ABB SNAT632PAC 61049428 is a pulse signal amplification board for industrial automation applications requiring accurate pulse signal processing. The module performs pulse signal amplification and supports an input signal range of 0–20 mA or 4–20 mA. SNAT632PAC 61049428 is designed for operation in ambient temperatures ranging from -20°C to +70°C and can be stored safely within a storage temperature range of -40°C to +85°C. The module also supports relative humidity from 5% to 95%, non-condensing, allowing SNAT632PAC 61049428 to operate reliably under a wide range of industrial environmental conditions.

Troubleshooting & Commissioning Checklist

Mechanical Alignment: Push the card smoothly down its allocated chassis guide or rack slot, confirming that backplane multi-pin interfaces couple perfectly straight to keep internal connector pins from buckling.
Power Bus Verification: Check the low-voltage auxiliary power lines right at the chassis terminal slots ahead of card insertion, making certain the measurements fall inside designated tolerances.
Thyristor Gate Isolation Test: Run a multimeter check on the pulse output lines running between the SNAT632PAC terminal strip and the SCR gates to ensure no shorts or ground faults exist.

Field Engineering Considerations

Zero-Volt Live Environment Handling: Do not, under any circumstances, hot-swap or pull this module if the drive's primary three-phase bridge grid or internal control voltage circuits are live.
Component-Level Vulnerability: Electrostatic discharge risks ruining the card's fast input logic gates and pulse-conditioning integrated circuits. Field personnel must lock a certified, earthed ESD wrist strap onto their arms prior to handling the parts, and always move the unit inside a closed anti-static envelope.
Backplane Stress Minimization: Bulky hardware components shift the card's physical center of gravity. Run the unit strictly parallel through the chassis guides, because uneven pushing forces during installation will bend or rupture the multi-pin backplane arrays.

Technical FAQ

Q: Can the SNAT 632 PAC 61049428 circuit board be hot-swapped while the control cabinet is running?
A: No. You must fully isolate and power down the primary line feed along with the auxiliary control circuitry before pulling or plugging this power electronics assembly to avoid catastrophic hardware destruction.

Q: Why does the SNAT 632 PAC 61049428 use built-in toroidal transformers on its output channels?
A: They establish heavy-duty galvanic isolation. This setup shields low-voltage control processors from high-voltage feedback surges if a power semiconductor breaks down.

Q: What does a "Pulse Missing" or Phase Loss trip indicate on a drive using the SNAT 632 PAC 61049428?
A: It generally points to a blown onboard driving transistor, a fractured pulse transformer, a break in the gate wiring, or a shorted gate layer inside an attached Thyristor.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
