3708E
16-Point Isolated Thermocouple Input Module · 16 · J K T E · 50 ms max · Isolated
Lifecycle note: Preserve thermocouple type, polarity, burnout settings and cold-junction arrangement. Verify the complete temperature loop and common-mode conditions after replacement.
ItemNO:
3708EProduct Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etc16-Point Isolated Thermocouple Input Module · Tricon Safety Systems

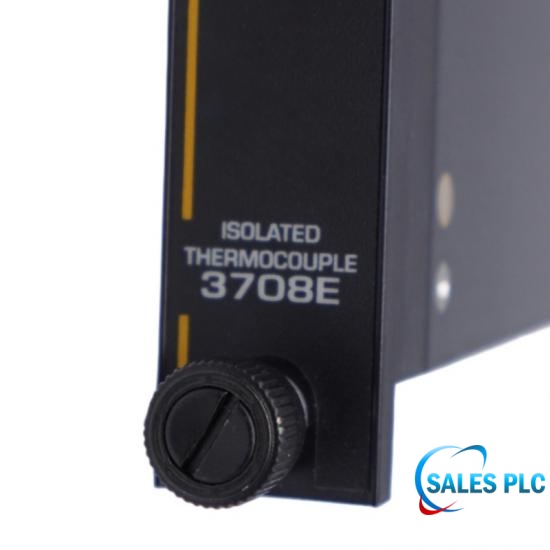

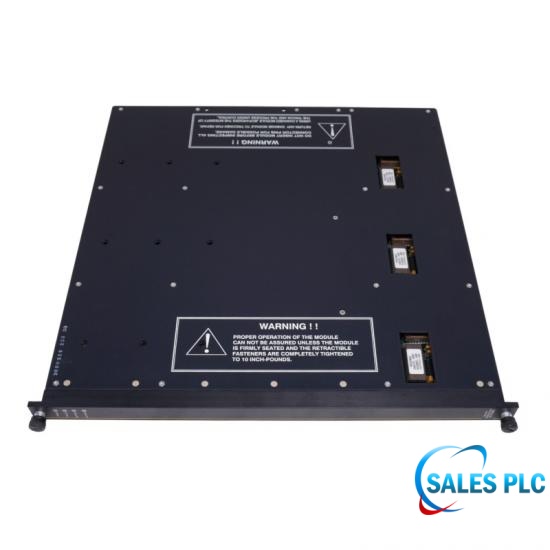

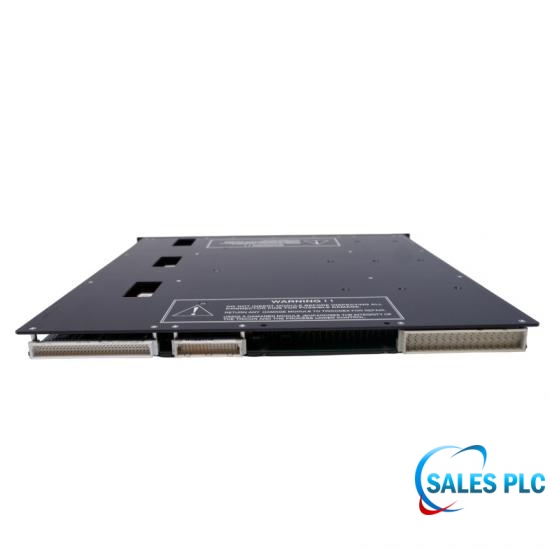

Triconex 3708E is a 16-channel differential, isolated TMR thermocouple input module supporting J, K, T and E thermocouples. Burnout direction is configurable in TriStation. The maximum update time is 50 ms, and the minimum DC input resistance is 30 megohms.
The manufacturer separates temperature measurement from common-mode and protection ratings. The ±200 VDC common-mode range and 110 VAC continuous point-protection rating are not thermocouple measuring spans. Cold-junction compensation is specified over 0–60 °C, and an illuminated CJ indicator signals a cold-junction fault.
Before replacement, record thermocouple type, polarity, burnout setting, channel scaling and termination arrangement. Inspect cold-junction conditions and cable material as part of an end-to-end temperature check. A successful millivolt input test alone does not prove cold-junction accuracy or the complete installed sensor circuit.
| Manufacturer | Triconex |
|---|---|
| Model | 3708E |
| Input arrangement | 16 differential isolated TMR thermocouple inputs |
| Thermocouple types | J, K, T and E |
| Burnout direction | Upscale or downscale; configured in TriStation |
| Maximum update time | 50 ms |
| DC input resistance | 30 MΩ minimum |
| Point protection | 110 VAC continuous; protection rating, not measurement range |
| Common-mode rejection | −100 dB minimum at DC; −90 dB minimum at 60 Hz |
| Normal-mode rejection | −3 dB typical at 8 Hz; −17 dB typical at 60 Hz |
| Common-mode range | ±200 VDC channel-to-channel and channel-to-ground |
| Cold-junction compensation | 0–60 °C |
| CJ indication | ON indicates a cold-junction fault |
| Logic power | Less than 15 W |
Preserve thermocouple type, polarity, burnout settings and cold-junction arrangement. Verify the complete temperature loop and common-mode conditions after replacement.
No. Review the manufacturer accuracy conditions and the installed cold-junction environment. A temperature gradient at the termination can affect the full loop even when the electronic input passes a bench test.
The documented types for 3708E are J, K, T and E. Do not import noble-metal thermocouple support from another module without an explicit manufacturer reference.
The configured burnout direction selects upscale or downscale behavior. Preserve that choice and prove the resulting application alarm or protective response with an approved open-circuit test.
No. It is the maximum module update time. Total response also includes application scheduling and subsequent output behavior, which must be assessed in the installed configuration.
The manual identifies CJ ON as a cold-junction fault indication. Investigate the cold-junction and termination arrangement together with module diagnostics rather than reading it as a healthy compensation lamp.
No. ±200 VDC is the common-mode limit between channels and ground, not a differential thermocouple measurement range. Keep the sensor signal and common-mode checks separate.
No. It is a continuous point-protection specification, not an operating measurement input. Use an appropriate thermocouple or calibrated signal source under the approved test procedure.
The manual describes diagnostic comparison criteria including 0.5 percent of full scale and repeated samples. Review the complete diagnostic conditions and actual input variation; a stable process reading alone does not prove a failed channel.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Manufacturer PDF extract: 3708E — Sales PLC Cover & Triconex Documentation. File size is below 1 MB; verify the exact installed hardware and configuration before use.
