9662-610
Field Termination · System Cable Interface · Tricon I/O
Lifecycle note: Triconex 9662-610 is a 32-point differential TMR field termination panel. Confirm signal range, shunt resistors, grounding, termination and configured scaling before replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:
+86 18020776786Field Termination Panel · Tricon Safety Systems

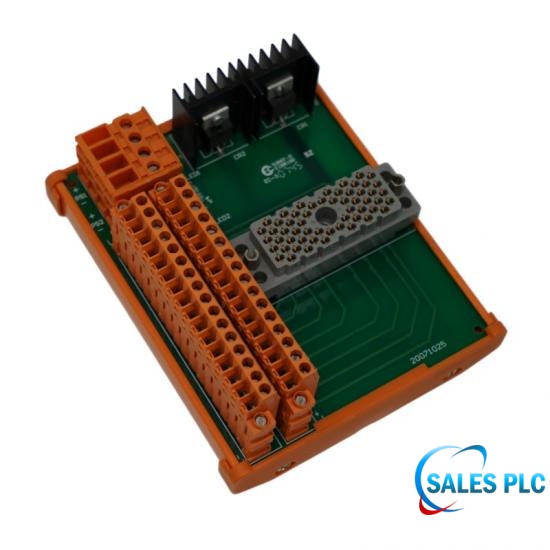

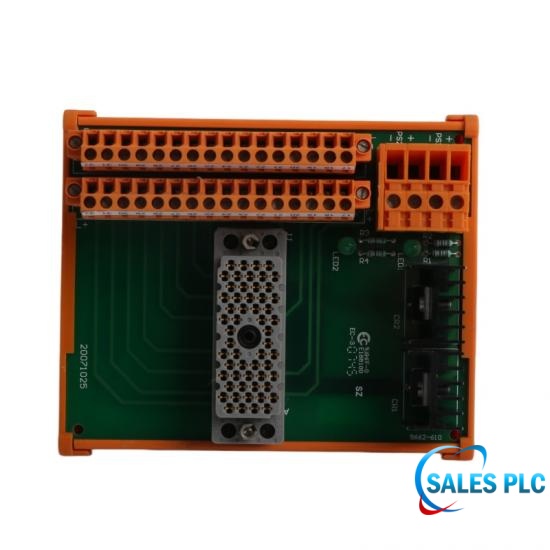

Triconex 9662-610 is a Field Termination Panel engineered for use within Tricon Safety Systems. It supports installed control, safety and maintenance strategies where the exact module or termination identity must remain traceable to the approved system configuration.
Key technical identifiers for engineering review include Panel type: Commoned digital-output termination panel; Points: 16; Field voltage: 24 VDC; Maximum total current: 16 A. These values should be checked against the installed hardware, field interface, project drawings and the current site asset record before replacement. From a system-integrator perspective, compatibility assessment should cover the complete model and hardware revision, chassis or termination arrangement, connector and channel mapping, field voltage or signal requirements, firmware or system release, and the applicable TriStation configuration.
For commissioning and maintenance, follow the approved isolation, inspection and test procedure. Record point checks, diagnostics, wiring condition and observed system response so the replacement decision can be traced to the installed loop or subsystem. For MRO procurement, provide a clear nameplate photo, required quantity, destination, urgency and any revision restrictions. Commercial confirmation should distinguish new, surplus and refurbished condition and should reference the offered serial or nameplate identity.
| Manufacturer | Triconex / Schneider Electric |
|---|---|
| Model | 9662-610 |
| Panel type | Commoned digital-output termination panel |
| Points | 16 |
| Field voltage | 24 VDC |
| Maximum total current | 16 A |
| Maximum current with Model 3625 | 10 A per termination panel |
| Compatible modules | 3624 / 3625 / 3664 / 3674 |
| 3624 module | 16-point, 24 VDC, supervised, TMR |
| 3625 module | 32-point, 24 VDC, supervised / non-supervised, TMR |
| 3664 module | 32-point, 24 VDC, dual |
| 3674 module | 32-point, 24 VDC, dual |
| Panels required for 32-point module | 2 |
| Output isolation | Opto-isolated |
| Output protection | Self-protected outputs |
Tricon is a legacy Triconex automation platform. Confirm the complete installed configuration before replacement or migration.
Record and approve 24 VDC field supply, 16 commoned points and the panel current limit. The baseline must match the installed safety application before hardware is moved.
The integration record must cover load grouping, common return, two-panel mapping and the connected 3624, 3625, 3664 or 3674 output module. Include drawings and point or port assignments with the change package.
Supplier inspection should include output-path continuity, connector condition, common bus integrity and evidence of self-protection testing. Results must be traceable to the offered serial or nameplate identity.

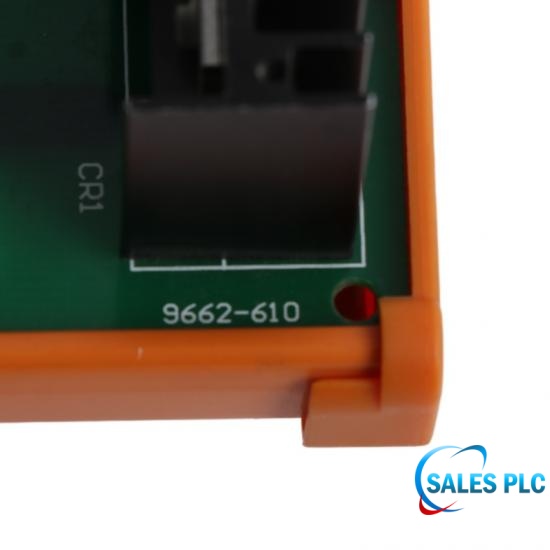

MRO should provide 9662-610 nameplate photos plus load current per point, total panel current, output module model and de-energize-to-trip philosophy. This prevents a visually similar but unsuitable spare from being selected.
Under the approved site procedure, command each assigned output, measure load voltage and verify the safe de-energized state. Record observed system indications before returning the loop or subsystem to service.
Check for a common supply drop, overloaded panel, field short or incorrect 1-16/17-32 mapping. Compare field measurements with module or panel indications before condemning the spare.
Engineering must account for 16 A general panel limit and the 10 A limit when paired with Model 3625. Similar connectors or base numbers alone do not establish interchangeability.
The final dossier should document load bank, energized voltage, total current, channel map and output diagnostics. Add revision and nameplate traceability so procurement and engineering review the same item.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Official PDF extract: Official Triconex Product Specifications — Model 9662-610. File size is below 1 MB; verify the exact installed hardware and configuration before use.
