16-Point Relay Output Termination Panel · 16 · Non-commoned · 16 · 3636R/T
Lifecycle note: Preserve panel-half labels, mating cables and individual power/load circuits. Verify the exact 3636R or 3636T module and approved fuse specification before replacement.
ItemNO:
9668-110Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etc16-Point Relay Output Termination Panel · Tricon Field Terminations

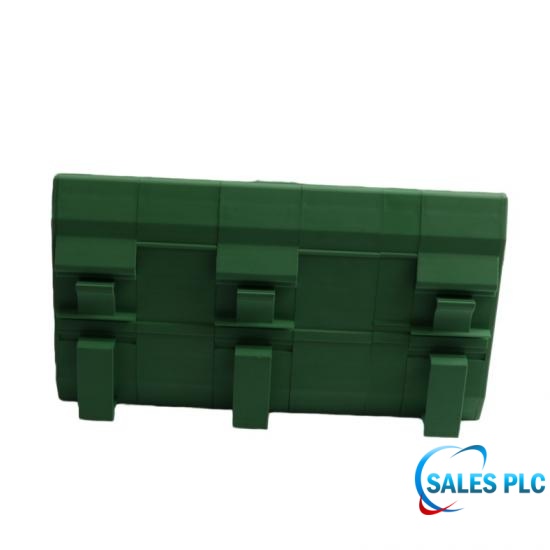

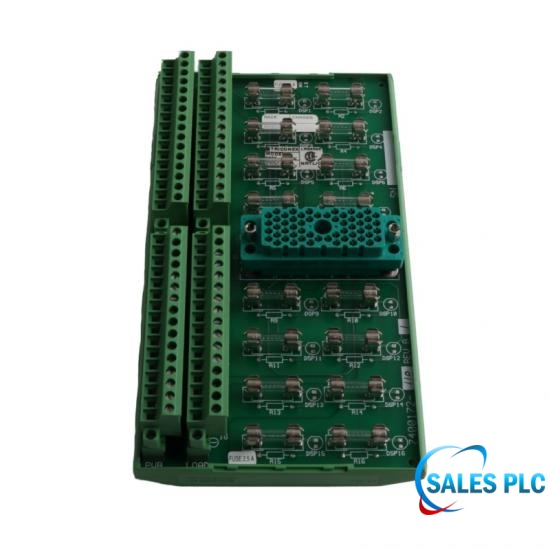

Triconex 9668-110 is a 16-point, non-commoned relay-output termination panel for the Tricon 3636R and 3636T relay modules. The field-termination guide identifies those compatible modules as 32-point units, requiring two 9668-110 panels for a complete module connection.

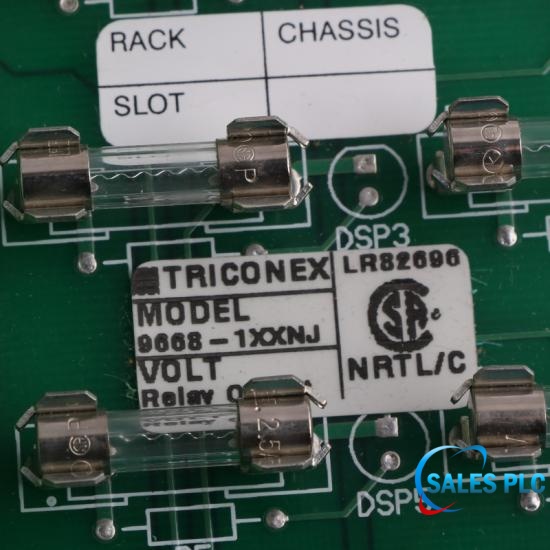

Each panel provides 16 pairs of LOAD terminals, 16 pairs of PWR terminals and 16 fuse positions. The compatible-module table specifies 2.5 A fast-acting fuses. Supplied label sets distinguish points 1–16 from points 17–32, so the same panel model can serve either half of the module.
Check cable identity, connector routing, panel-half labels and the field circuit before replacement. The termination panel is an interconnection assembly; the relay module supplies the actual switching function. Apply the load and isolation limits of the exact installed module together with the approved termination wiring.
| Manufacturer | Triconex |
|---|---|
| Model | 9668-110 |
| Panel type | Non-commoned relay output termination |
| Points per panel | 16 |
| Compatible relay modules | 3636R and 3636T |
| Points per compatible module | 32 |
| Panels per module | Two |
| Load terminals | 16 LOAD+ / LOAD− pairs |
| Field power terminals | 16 PWR+ / PWR− pairs |
| Fuse positions | 16 |
| Specified module fuse | 2.5 A fast acting |
| Point label sets | 1–16 and 17–32 |
| Compatible contact arrangement | Normally open, non-commoned relay outputs |
| Installation reference | Field Terminations Guide, 9700052-018, printed pages 132–134 |
Preserve panel-half labels, mating cables and individual power/load circuits. Verify the exact 3636R or 3636T module and approved fuse specification before replacement.
Each 9668-110 terminates 16 points, while 3636R and 3636T each provide 32. Use two correctly cabled panels and document which half of the module each serves.
The guide supplies label sets for points 1–16 and 17–32. Apply the set matching the cable and channel allocation; the identical panel model does not by itself reveal the assigned half.
No. The panel provides separate LOAD+ / LOAD− and PWR+ / PWR− pairs for each point. Follow the original field diagram and verify both sides before reconnecting a circuit.
The guide identifies it as the field termination for a relay-output module. Switching is performed by the compatible module; do not order this panel as a stand-alone relay module.
The manufacturer table for 3636R and 3636T specifies 2.5 A fast-acting fuses. Confirm the exact approved fuse and circuit before service; fuse current is not an increase to the relay contact rating.
No. Circuit qualification depends on the actual module, panel, cable and field wiring. The compatible-module list does not erase the different 3636R and 3636T module isolation ratings.
State the panel quantity, associated relay model, cable identity and whether the installation uses point labels 1–16 or 17–32. Confirm separately whether cables and fuse hardware are included in the offer.
Use the approved diagram to trace each assigned point through its cable to the corresponding power and load terminal pairs. Record the panel-half label and fuse position for every circuit before functional testing.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Manufacturer PDF extract: 9668-110 — Sales PLC Cover & Triconex Documentation. File size is below 1 MB; verify the exact installed hardware and configuration before use.
