DATX131
Rotor-Feedback Circuit Board · Requested order 3ASC25H215
Lifecycle note: Match the installed drawing and board label. Requested order and electrical ratings require confirmation before replacement.
ItemNO:
3ASC25H215Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
info@amikon.cnWhatsapp/Mob:

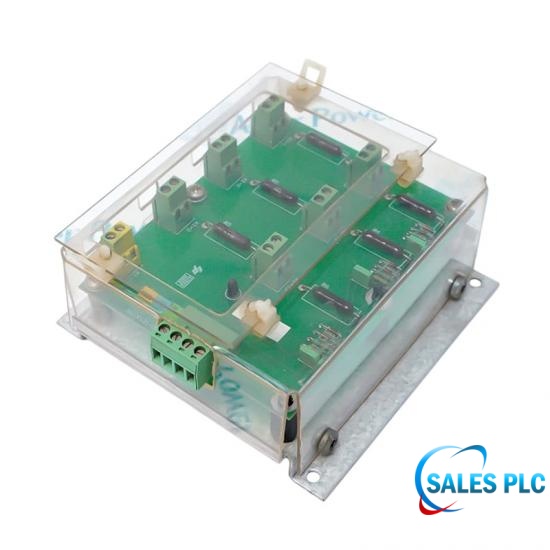

+86-18020776786Rotor-Feedback Circuit Board · ASTAT
ABB DATX131 is identified in the feedback-module drawing within the ABB ASTAT manual. The manual assigns this rotor-measurement drawing to DARA 1001 / 1010 assemblies. The requested purchasing reference is 3ASC25H215; the selected original pages identify DATX131 but do not independently verify that order number.
Drawing 3ASC25H200, sheet 9, shows terminal groups X1:1–3 and X1:11–13, connection X2 and PE, and assemblies A4.1–A4.4 associated with feedback references RM1–RM4. These are circuit identifiers, not numerical performance ratings. Four assemblies in a drawing must not be described as four analog channels on a single board.
For system integration and MRO sourcing, compare the installed board label, assembly reference and wiring revision with the original drawing. Voltage limits, current limits, division ratio, accuracy and environmental ratings remain to be confirmed before selecting or testing a replacement. Qualified personnel should use the approved site procedure and obtain the missing manufacturer data rather than apply generic I/O specifications.
| Manufacturer | ABB |
|---|---|
| Model | DATX131 |
| Requested order number | 3ASC25H215 — nameplate / manufacturer confirmation required |
| Documented application | ASTAT rotor-measurement feedback circuit |
| Drawing context | DARA 1001 / 1010 assemblies |
| Drawing reference | 3ASC25H200, sheet 9; not an order number |
| Terminal labels, first group | X1:1, X1:2, X1:3 |
| Terminal labels, second group | X1:11, X1:12, X1:13 |
| Other connection labels | X2 and PE |
| Assembly references | A4.1–A4.4: four drawn assemblies, not four channels per board |
| Feedback circuit references | RM1–RM4 |
| Voltage and current ratings | To be confirmed; not specified by the selected drawing |
| Division ratio and accuracy | To be confirmed; resistor values are not established here |
| Environmental / isolation ratings | To be confirmed; do not infer from other ASTAT modules |
Preserve the ASTAT drawing revision and terminal identification. Confirm the board nameplate and missing electrical ratings before replacement or testing.
No. A4.1–A4.4 identify four separate assemblies shown on the system drawing. This does not establish a per-board channel count, sampling specification or analog input range. Keep assembly quantities separate from module performance in the bill of materials.
They are terminal identifiers. The numbers do not mean 11 V, 12 V or 13 V. Preserve the full connector-and-terminal notation and match it to the installed drawing revision rather than shortening it to a bare number.
Not by themselves. The selected drawing does not establish the resistor values and tolerances needed to calculate a verified ratio. Obtain the correct component data and approved test limits before specifying an acceptance measurement.
No. Neither range is established for DATX131 by these selected manufacturer pages. A generic industrial-control-board description is not evidence of an analog I/O range; leave those values unconfirmed until model-specific documentation is available.
No. A shared drawing label does not establish that stocked variants or revisions are interchangeable. The integrator must reconcile the installed assembly, board label and approved spare-part mapping before accepting a substitution.
Do not assume that equivalence. Preserve the PE designation and obtain the applicable installation and grounding instructions. This circuit-reference extract is not sufficient authority to alter bonding or signal-reference connections.
It is the drawing reference on sheet 9, not proof of the board order number. The requested purchasing reference 3ASC25H215 must be checked against the physical nameplate or a manufacturer spare-parts record before order release.

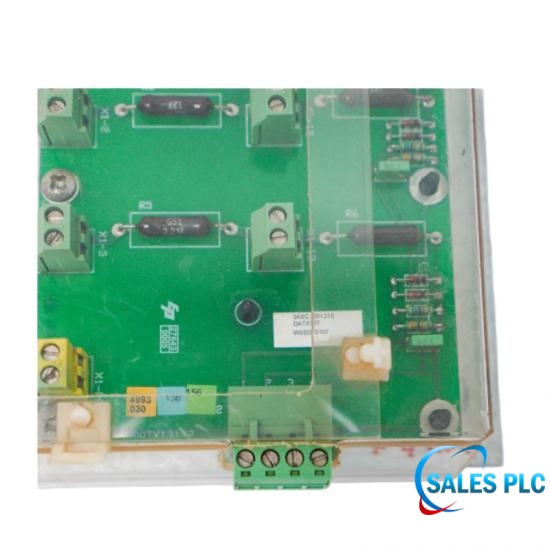

Record the visible DATX131 marking and revision, retain photographs, and place electrical acceptance on hold until the applicable ratings and test method are confirmed. Do not energize the spare using ratings borrowed from adjacent ASTAT power-supply modules.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Manufacturer reference: ABB ASTAT manual, original PDF pages 225 and 242. Three-page Sales PLC reference PDF, approximately 106 KB. The drawing verifies DATX131 identification, not the requested order or complete electrical ratings.
