SDCS-PIN-51
DCS800 Power Interface Measurement Board · Power-interface measurement board for DCS800 converters using the SDCS-PIN-4x interface arrangement.
Lifecycle note: Use the unit nameplate and current official documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275DCS800 Power Interface Measurement Board · ABB DCS800 DC Drives

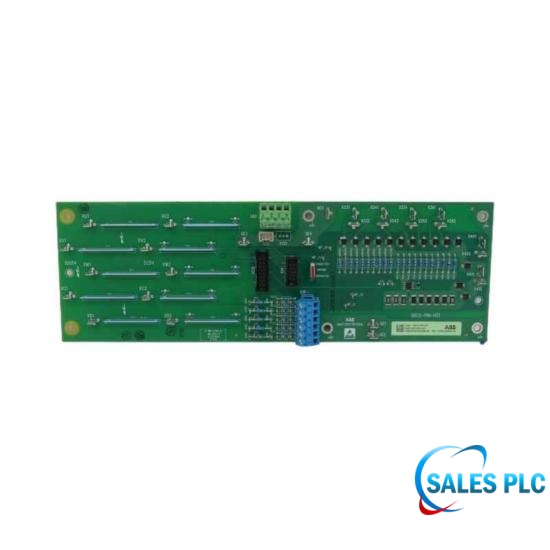

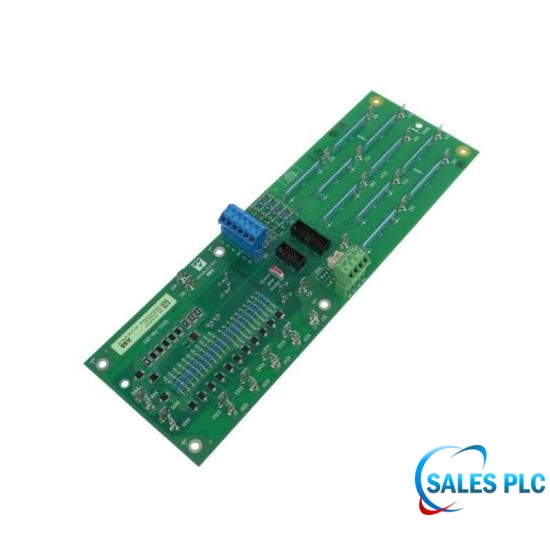

ABB SDCS-PIN-51 is a DCS800 power-interface measurement board used with the SDCS-PIN-4x arrangement for converter current, voltage and temperature acquisition.
Current is derived through current transformers and diode-bridge circuitry, while high-value resistor strings adapt the U1, V1, W1, C1+ and D1- voltage measurements and support converter hardware coding.
Because the measurement signals are not galvanically isolated, apply the approved high-voltage isolation procedure and verify converter size, resistor-string configuration, CT wiring, temperature input, connectors and board revision before replacement.
| Manufacturer | ABB |
|---|---|

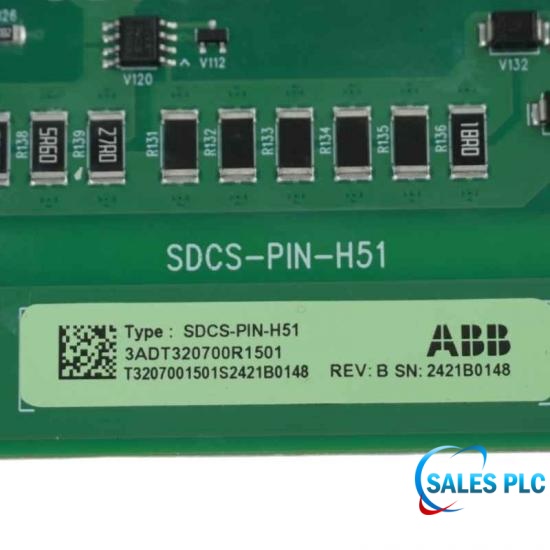

| Board designation | SDCS-PIN-51 |
| Drive family | DCS800 DC drives |
| Companion interface | SDCS-PIN-4x |
| Current measurement | Current transformers and diode-bridge signal conversion |
| Voltage measurement | U1, V1, W1, C1+ and D1- through high-value resistor circuits |
| Temperature measurement | Power-section temperature input |
| Hardware coding | Board provides converter hardware coding |
| Voltage adaptation | Five configurable resistor strings |
| Typical leakage at 500 V | 5 mA with approximately 1 Mohm |
| Typical leakage at 1000 V | 5 mA with approximately 2 Mohm |
| Signal isolation | Measurement signals are not galvanically isolated |
ABB SDCS-PIN-51 acquires power-section current, voltage and temperature signals for a configured DCS800 converter and provides the associated hardware coding.
ABB SDCS-PIN-51 receives current-transformer signals and converts them through diode-bridge and matching-resistor circuitry for the drive control interface.
ABB SDCS-PIN-51 measures the U1, V1, W1, C1+ and D1- points through high-value resistor circuits configured for the converter voltage class.
The measurement signals on ABB SDCS-PIN-51 are not galvanically isolated, so the approved high-voltage isolation and discharge procedure is mandatory.
Another SDCS-PIN board cannot directly replace ABB SDCS-PIN-51 unless converter size, voltage adaptation, CT inputs, temperature circuit, hardware coding, connectors and revision all match.
Commission ABB SDCS-PIN-51 by verifying safe isolation, resistor and CT configuration, voltage and current feedback, temperature indication, drive diagnostics and controlled converter operation.
Provide the full ABB SDCS-PIN-51 label, DCS800 type and voltage, resistor and connector photos, companion board, quantity and destination.
Send the complete SDCS-PIN-51 catalog number, revision, quantity, destination and nameplate photo. Identification details will be checked before quotation.
