Power Supply Board | SAFT 112 POW 57411431 | ABB

Technical Specifications

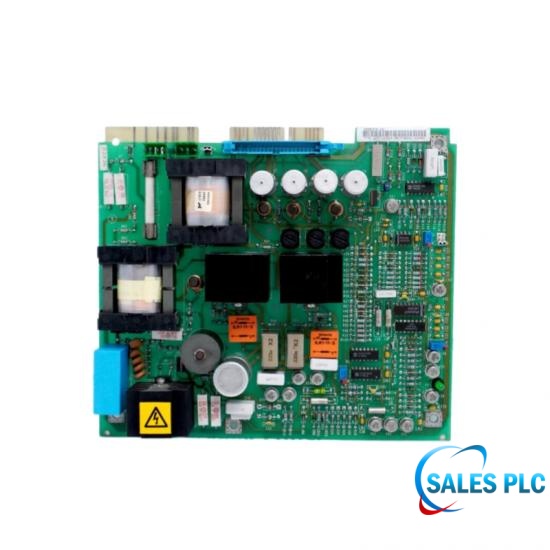

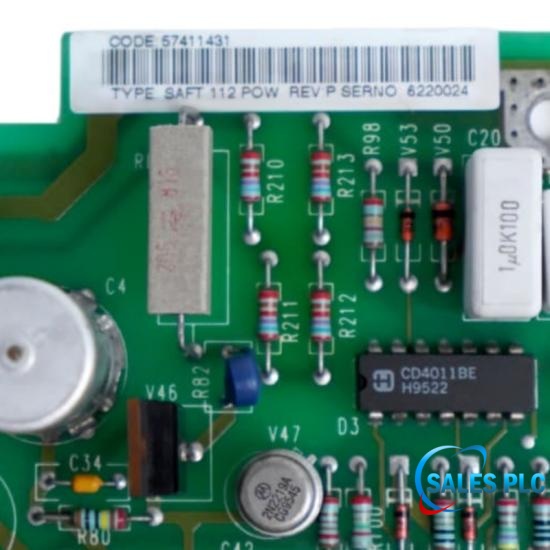

The ABB SAFT 112 POW 57411431 is a plug-in printed circuit board to provide reliable power conversion for ABB industrial drive systems. SAFT 112 POW 57411431 accepts an input voltage range of 100 to 240 V AC and delivers a nominal output voltage of 12 V DC, providing stable power for compatible control circuits. SAFT 112 POW 57411431 also supports a maximum output power of 120 W, making it suitable for continuous industrial power supply applications. SAFT 112 POW 57411431 is engineered with a power conversion efficiency greater than 85%, helping reduce energy losses while maintaining dependable power delivery.

Troubleshooting & Commissioning Checklist

Logic Board Energization: Feed the main low-voltage AC utility line into the system initially while keeping the heavy-duty inverter switching network completely disabled.
Potential Level Verification: Connect a digital multi-tester directly across the designated chassis test nodes or the rear-plane terminal array to confirm an unwavering nominal 12 V DC delivery.
High-Tension Main Engagement: Flip the primary high-voltage utility breakers to active, reset any stuck safety protection lockouts, and run functional trials on the inverter assembly while connected to an active load.

Field Engineering Considerations

Energy Dissipation Interval: Pause for a minimum of 5 minutes following primary shutdown to allow the mid-stage DC link capacitors to bleed down below a safe 50V DC threshold.
Static Protection Measures: Secure a bonded anti-static wrist tether prior to touching the module to shield delicate switching field-effect transistors from damage.
Demand Ceiling Supervision: Keep track of aggregate chassis card current draw to guarantee the cumulative downstream power requirements never surpass the 120W maximum limit.

Technical FAQ

Q: Should a field operator replace the SAFT 112 POW 57411431 hardware unit while the equipment rack remains completely powered up?
A: This is strictly out of the question, as pulling or plugging components while live is entirely prohibited. Every main and auxiliary power source must be disconnected before detachment to eliminate severe electrical flashes across the back multi-contact DIN interface.

Q: Where do I begin diagnostics if the operating system log indicates a total loss of the internal logic supply linked to the SAFT 112 POW 57411431 board?
A: Disconnect power to the main enclosure and verify the arriving 100-240V AC grid lines, check the integrated subrack safety links, and ensure the module hasn't shifted loose from its physical track channels.

Q: When the 12V DC secondary rail fluctuates wildly or picks up sharp electrical hash, what specific elements on the SAFT 112 POW 57411431 card are likely deteriorating?
A: Direct your troubleshooting toward the heavy-duty input and output electrolytic filtering barrels, which often dry out or swell up from non-stop thermal stress inside sealed machine boxes.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
