3510

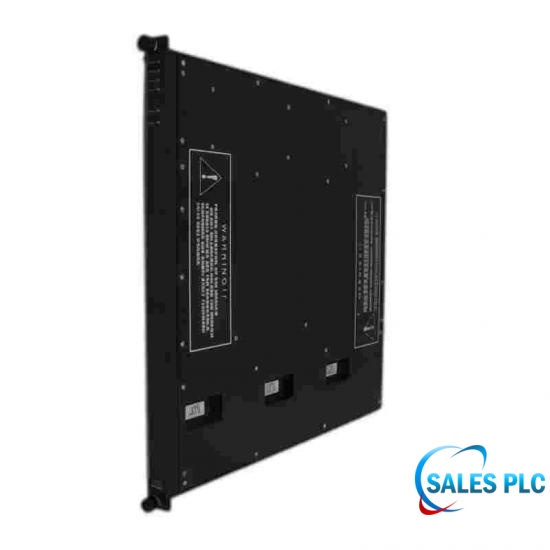

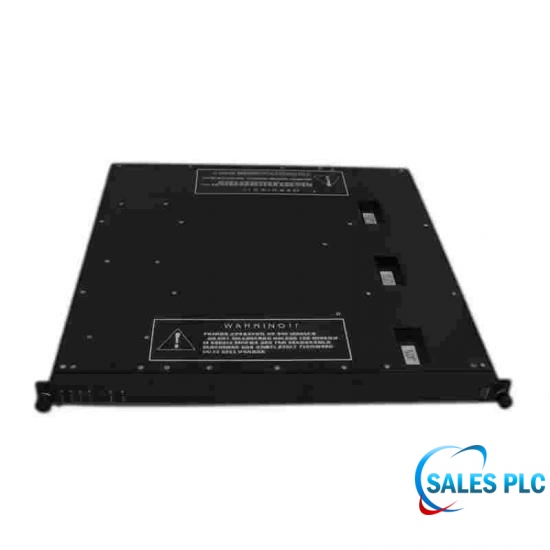

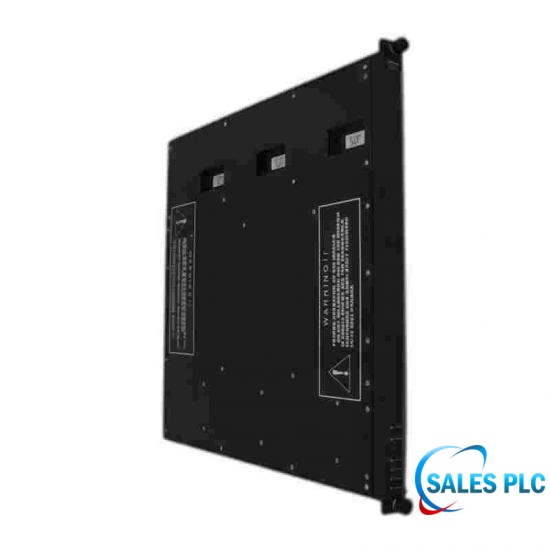

8-Channel Pulse Input Module - TMR Pulse Input Module
Lifecycle note: Use the unit nameplate and current Schneider Electric documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 153594082758-Channel Pulse Input Module - Tricon Safety System
Triconex 3510 is an 8-channel pulse input module for frequency-based measurements in the Tricon TMR safety platform. The eight non-commoned, AC-coupled balanced differential inputs accept pulse frequencies from 20 Hz to 20,000 Hz.
The documented accuracy is plus or minus 0.01 percent from 1,000 to 20,000 Hz, plus or minus 0.1 percent from 100 to 999 Hz, and plus or minus 1.0 percent from 20 to 99 Hz. The input update time is approximately 50 ms.
Applications can include speed or flow measurements where the field sensor, pulse amplitude, grounding and scaling are engineered for the 3510 input circuit. Verify the exact revision, termination, channel configuration and trip logic before replacement.
| Manufacturer | Triconex |
|---|---|
| Model | 3510 |
| Product type | TMR pulse input module |
| Input channels | 8 non-commoned inputs |
| Frequency range | 20 Hz to 20,000 Hz |
| Accuracy at 1,000 to 20,000 Hz | Plus or minus 0.01% |
| Accuracy at 100 to 999 Hz | Plus or minus 0.1% |
| Accuracy at 20 to 99 Hz | Plus or minus 1.0% |
| Input update time | Approximately 50 ms |
| Input circuit | AC-coupled balanced differential |
| Load impedance | Greater than 8 kilohms; 20 kilohms typical |
| Common-mode range | -100 V to +100 V peak-to-peak |
| Continuous overrange | Plus or minus 150 VDC |
Triconex 3510 measures pulse-frequency signals from 20 Hz to 20,000 Hz across eight non-commoned differential input channels.
Triconex 3510 is specified at plus or minus 0.01 percent from 1,000 to 20,000 Hz, plus or minus 0.1 percent from 100 to 999 Hz, and plus or minus 1.0 percent from 20 to 99 Hz.
The documented input update time for Triconex 3510 is approximately 50 ms, which must be considered with the application scan and trip logic.
Triconex 3510 uses AC-coupled balanced differential inputs with load impedance greater than 8 kilohms and approximately 20 kilohms typical.
Triconex 3510 documents a common-mode range of -100 V to +100 V peak-to-peak and continuous overrange protection of plus or minus 150 VDC.
No. A standard digital input does not provide the pulse-frequency measurement range, accuracy and differential input circuit required for the 3510 application.
Provide the complete 3510 nameplate, revision, chassis and slot, termination hardware, sensor signal range, configured scaling, quantity and destination.
Send the complete Triconex model, revision, quantity, destination and nameplate photo. Identification and compatibility details will be checked before quotation.
