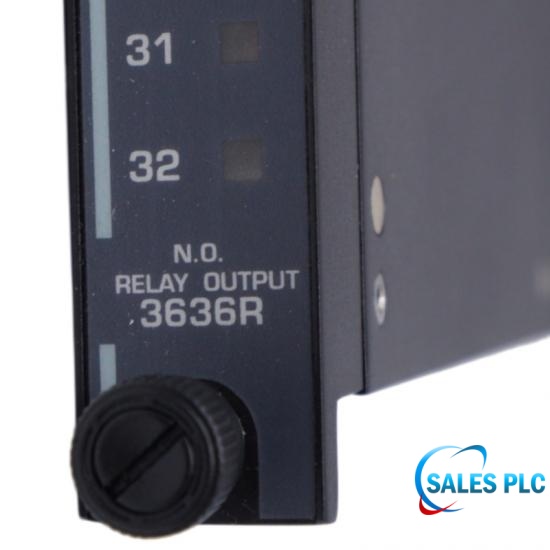

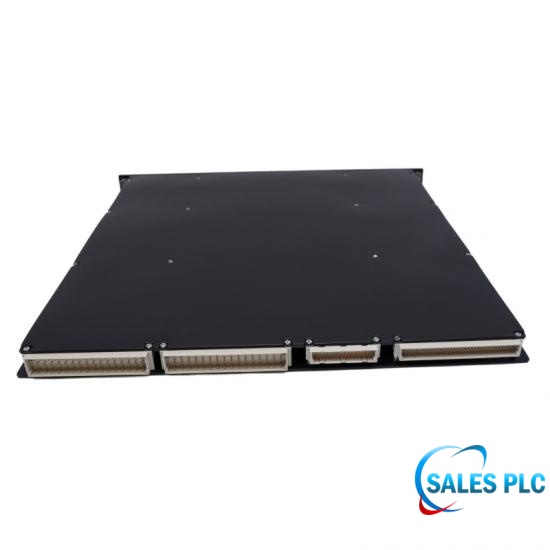

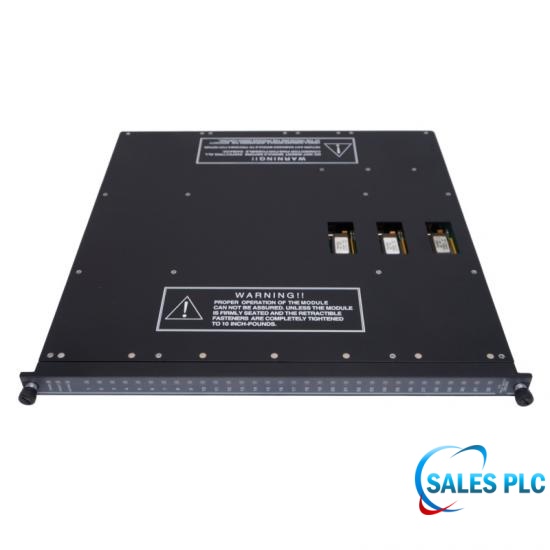

3636R
32-Point Relay Output Module · 32 NO · 125 VAC/DC · 2 A · Non-TMR
Lifecycle note: Retain the noncritical relay-output application boundary, actual load characteristics and primary/spare arrangement. Verify contact condition as well as logic diagnostics.
ItemNO:
3636RProduct Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etc32-Point Relay Output Module · Tricon Safety Systems
Triconex 3636R provides 32 non-commoned, normally open relay outputs. Although the module receives and votes commands from three system channels, the relay outputs themselves are non-triplicated. The manufacturer identifies this relay-output class for noncritical duties such as annunciator panels.
Each contact has a maximum rating of 125 VAC or VDC and 2 A, with a minimum load of 10 mA at 5 VDC. Load type, inrush and the published switching-life limits matter independently of the steady-state current. The 3636R minimum point isolation is 1500 VDC.
A full 32-point circuit uses two 16-point 9668-110 termination panels with the correct point labels and cables. Record the primary and spare arrangement and test actual contact operation, fuses and annunciation behavior. Do not characterize this non-triplicated relay stage as a TMR final shutdown output.
| Manufacturer | Triconex |
|---|---|
| Model | 3636R |
| Output architecture | 32 non-commoned, non-triplicated relay outputs |
| Contact form | Normally open |
| Intended duty | Noncritical outputs such as annunciator panels |
| Maximum switching voltage | 125 VAC or VDC |
| Maximum contact current | 2 A |
| Minimum load | 10 mA at 5 VDC |
| Field fuse | 2.5 A fast acting, one per output |
| Minimum point isolation | 1500 VDC |
| Logic power | Less than 10 W all off; less than 30 W all on |
| Maximum switching rate | Less than 30 cycles per second |
| Contact life | More than 10,000 cycles at maximum rated load |
| External termination | Two 9668-110 panels for 32 outputs; verify cables |
Retain the noncritical relay-output application boundary, actual load characteristics and primary/spare arrangement. Verify contact condition as well as logic diagnostics.
No. Commands are voted, but the final relay outputs are non-triplicated. This distinction is why the manufacturer identifies noncritical applications such as annunciator panels.
The manual states that point indications are provided by the primary module, not the hot spare. Check module role before treating a dark spare point LED as a failed field contact.
Only if the complete circuit meets the specified minimum of 10 mA at 5 VDC. A high-impedance sensing input may not provide an appropriate wetting load for an acceptance test.
Lamp turn-on current can greatly exceed the steady-state value; the manual discusses inrush of roughly 10–15 times normal current. Review that transient against the contact application limits.
The manufacturer derates reactive-load switching power to 25 percent of the resistive-load rating. Use the applicable AC/DC load specification and suppression design instead of relying only on the 2 A contact figure.
The specified contacts are normally open. Obtain any required fail-state behavior through the approved external circuit and application design; a normally closed contact is not established by this model specification.
No. The R variant has a 1500 VDC minimum point-isolation rating in the manufacturer table. Maintain the suffix distinction in procurement and testing.
No. Rate and endurance are separate limits: less than 30 cycles per second and more than 10,000 cycles at maximum rated load. Evaluate actual duty cycle, load and required service interval together.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Manufacturer PDF extract: 3636R — Sales PLC Cover & Triconex Documentation. File size is below 1 MB; verify the exact installed hardware and configuration before use.
