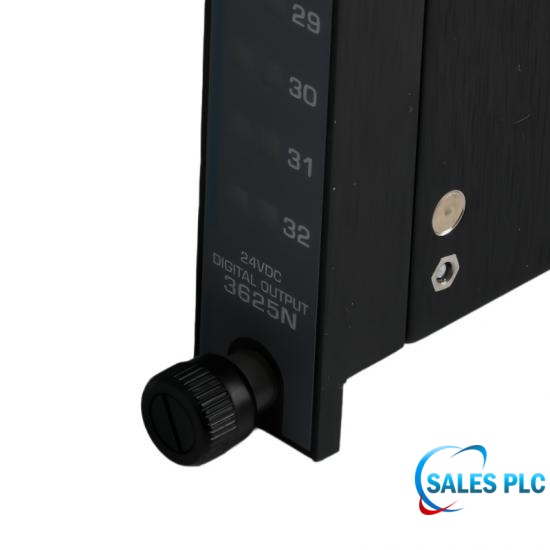

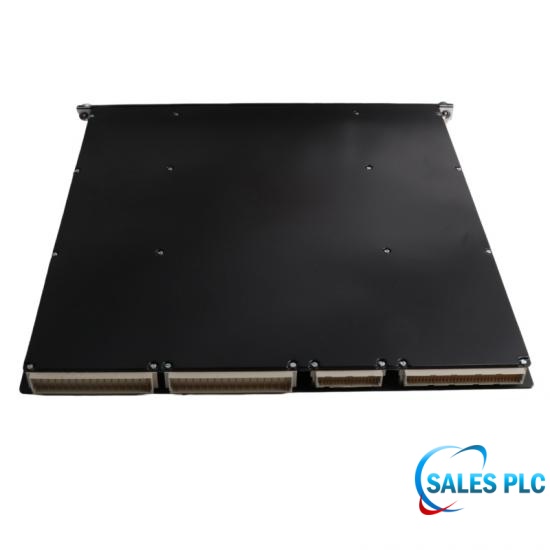

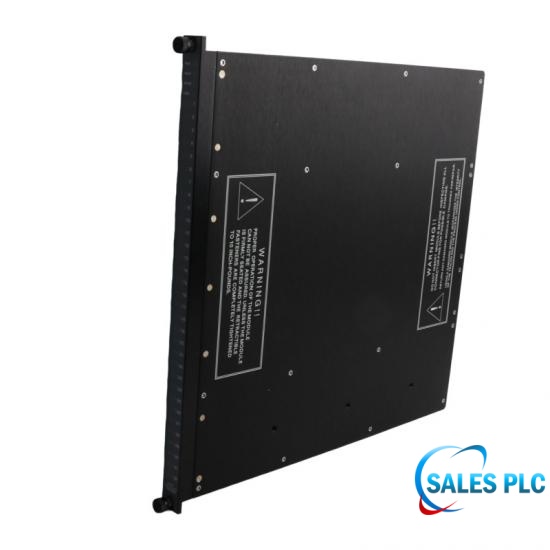

3625N
24 VDC TMR Digital Output Module · 32 · 24 VDC · Commoned · Configurable
Lifecycle note: Retain the exact 3625N identity, shared field-power arrangement, supervision settings and qualification record. Validate point and termination-panel loading separately.
ItemNO:
3625NProduct Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etc24 VDC TMR Digital Output Module · Tricon Nuclear Equipment
Triconex 3625N is the nuclear-equipment model mapped by the manufacturer to the standard 3625 digital output module. It provides 32 commoned TMR outputs for nominal 24 VDC circuits, with supervised or non-supervised operation configured by point. The manufacturer mapping supports the technical data while preserving the exact N-suffix identity.
The documented operating range is 16–32 VDC, with a 36 VDC maximum. The point-current figure is 1.70 A ±10%, and each termination panel has a separate 10 A maximum. Two panels serve the 32 outputs, so simultaneous-load calculations must satisfy both point and panel limits.
Record supervision choices, load thresholds, shared field power and the installed termination assignment before replacement. Minimum load and off-state leakage matter for low-power devices, and fast loads should be assessed against the documented diagnostic glitch. Nuclear-equipment qualification and configuration evidence must accompany the exact spare.
| Manufacturer | Triconex |
|---|---|
| Model | 3625N |
| Manufacturer cross-reference | Nuclear 3625N corresponds to standard 3625 |
| Architecture | 32 commoned TMR outputs |
| Nominal field voltage | 24 VDC |
| Operating range | 16–32 VDC; 36 VDC maximum |
| Point configuration | Supervised or non-supervised |
| Point current limit | 1.70 A ±10% |
| Surge capability | 5 A for 7 ms |
| Termination-panel current | 10 A maximum per panel; two panels for 32 points |
| Minimum load | 10 mA |
| Off-state leakage | 2 mA at 24 V; 2.5 mA at 32 V |
| Logic power | Less than 13 W |
| Output glitch | 2 ms maximum; 200 µs typical |
Retain the exact 3625N identity, shared field-power arrangement, supervision settings and qualification record. Validate point and termination-panel loading separately.
The corresponding 3625 information allows supervised or non-supervised configuration by point. Preserve the approved selection and associated load thresholds for every channel during replacement.
No. The manufacturer maps 3625N to 3625, whose 32 outputs are commoned. Do not transfer the 3625A grouping arrangement into the N model record.
Check the 1.70 A ±10% point figure and the independent 10 A maximum for each termination panel. Adding all point maxima is not an acceptable continuous-load budget for a panel.
It falls below the documented minimum load. Review the supervised-circuit design and diagnostic behavior with engineering before accepting the circuit, even if it appears to switch on a bench.
The specified output glitch is 2 ms maximum and 200 microseconds typical. A fast load can respond differently from a slow indicator, so validate the approved load under its configured diagnostics.
No. The surge allowance is limited to 7 ms. Continuous and transient demands must be evaluated against their separate ratings and the termination-panel current total.
No. The manual supplies the standard-to-nuclear technical correspondence. The offered unit still needs the exact identity, revision and qualification traceability required by the installation.
The corresponding manufacturer specification gives 2.5 mA at 32 V, compared with 2 mA at 24 V. Use the value appropriate to the actual field supply when evaluating a de-energized load.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Manufacturer PDF extract: 3625N — Sales PLC Cover & Triconex Documentation. File size is below 1 MB; verify the exact installed hardware and configuration before use.
